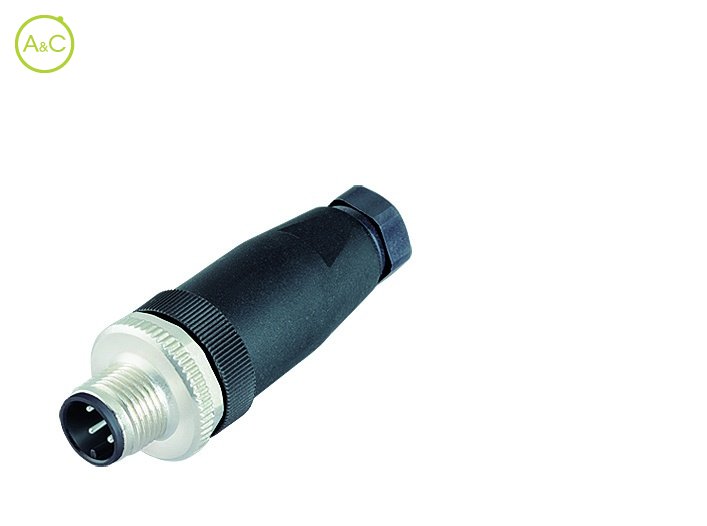

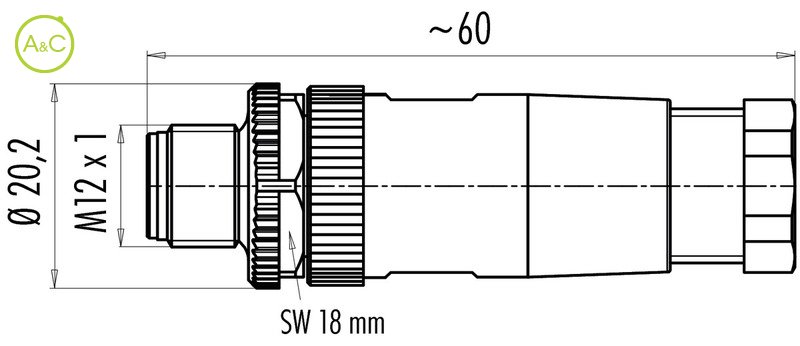

Male cable connector

Metal locking system, screw clamp connection, solder termination on 12 pol
UL-approval

99-0429-07-04

99-0429-07-04

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
5
8
12

Article Number	99 0429 07 04	99 0429 158 04
Connector Diameter	20.2 mm	20.2 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	8 mΩ	8 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	CuSnZn (Optalloy)	CuSnZn (Optalloy)
Material Of Insert	PA	PA
Material Of Housing	PA	PA
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 0429 314 04	99 0429 14 04	99 0429 12 04
Connector Diameter	20.2 mm	20.2 mm	20.2 mm
Number Of Contacts	4 contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Screw	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Impuls Voltage	2500 V	2500 V	2500 V
Pollution Degree	3	3	3
Overvoltage Categorie	II	II	II
Material Group	III	III	III
Rated Current (40°)	4 A	4 A	4 A
Max. Contact Resistance	8 mΩ	8 mΩ	8 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	CuSnZn (Optalloy)	CuSnZn (Optalloy)	CuSnZn (Optalloy)
Material Of Insert	PA	PA	PA
Material Of Housing	PA	PA	PA
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 0437 14 05	99 0437 12 05
Connector Diameter	20.2 mm	20.2 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	8 mΩ	8 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	CuSnZn (Optalloy)	CuSnZn (Optalloy)
Material Of Insert	PA	PA
Material Of Housing	PA	PA
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 0487 12 08
Connector Diameter	20.2 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw
Wire Section	0.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Datenblatt	Download Datenblatt

Article Number	99 0491 12 12
Connector Diameter	20.2 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
