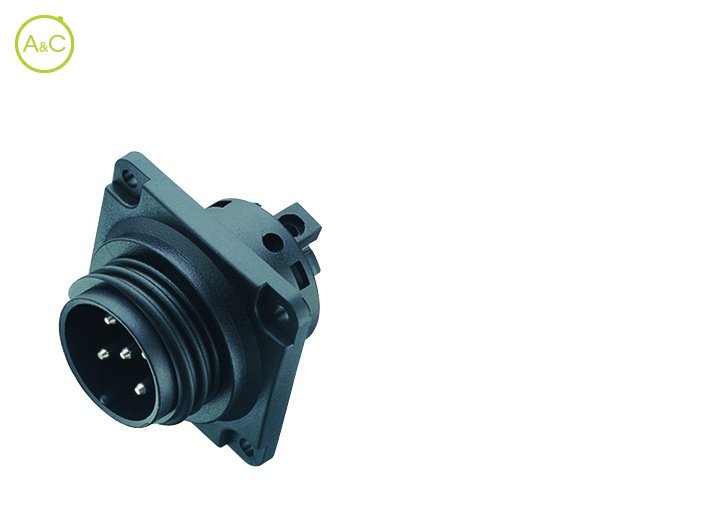

Male panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 4+PE
- 12+PE
- 24
| Article Number | 99 0711 00 05 |
| Connector Diameter | 40 mm |
| Number Of Contacts | 4+PE contacts |
| Connector Locking System | Screw (RD30) |
| Termination | Screw |
| Wire Section | 2.5 mm² |
| Protection Degree | IP65 |
| Mating Cycles | >500 times |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 400 |
| Rated Impuls Voltage | 6000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 20 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Ag (Silver) |
| Material Of Insert | PA (UL 94 HB) |
| Material Of Housing | PA (UL 94 V-0) |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
