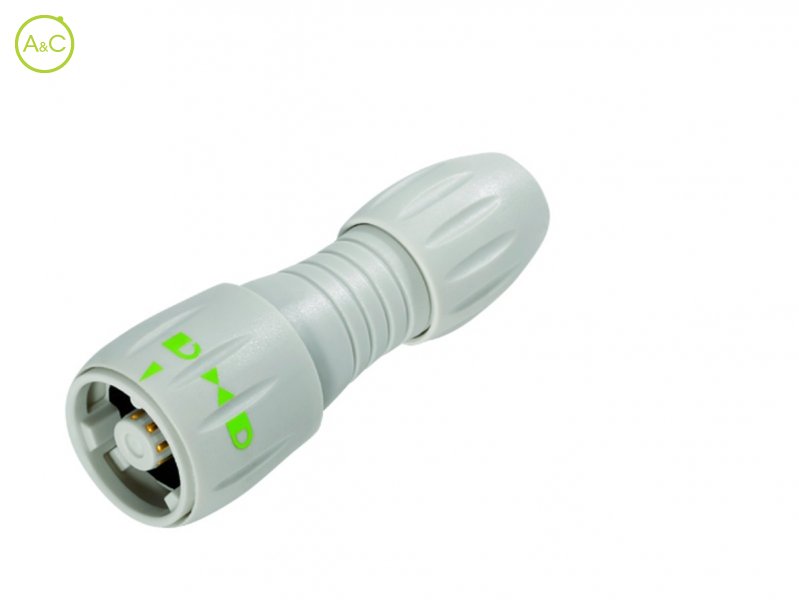

Male cable connector

  • Cable outlet 2,5-8

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Number Of Poles

  • 8
Article Number 99 0771 400 08 99 0771 401 08 99 0771 402 08

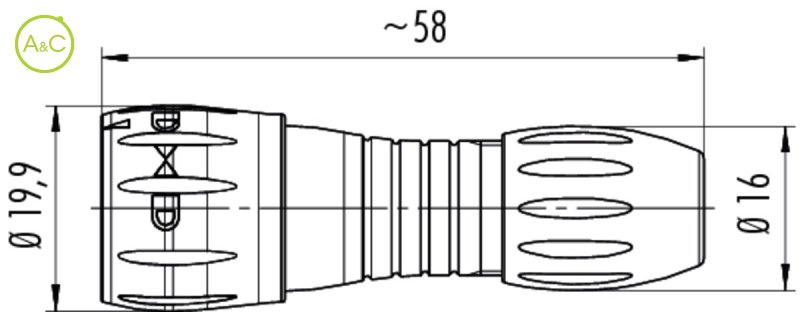

Connector Diameter 19.9 mm 19.9 mm 19.9 mm
Number Of Contacts 8 contacts 8 contacts 8 contacts
Connector Locking System Bayonet Bayonet Bayonet
Termination Solder Solder Solder
Wire Section 0.25 mm² 0.25 mm² 0.25 mm²
Protection Degree IP67 IP67 IP67
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 175 175 175
Rated Impuls Voltage 1750 V 1750 V 1750 V
Pollution Degree 2 2 2
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 2 A 2 A 2 A
Max. Contact Resistance 15 mΩ 15 mΩ 15 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA (UL 94 H-B) PA (UL 94 H-B) PA (UL 94 H-B)
Material Of Housing PA (UL 94 V-0) PA (UL 94 V-0) PA (UL 94 V-0)
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
