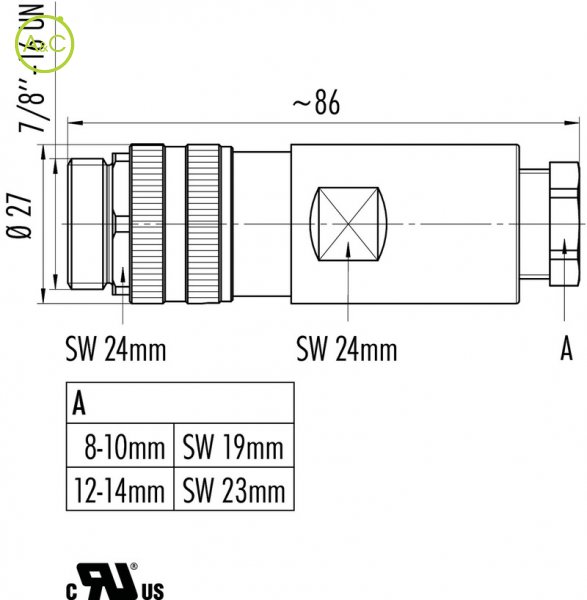

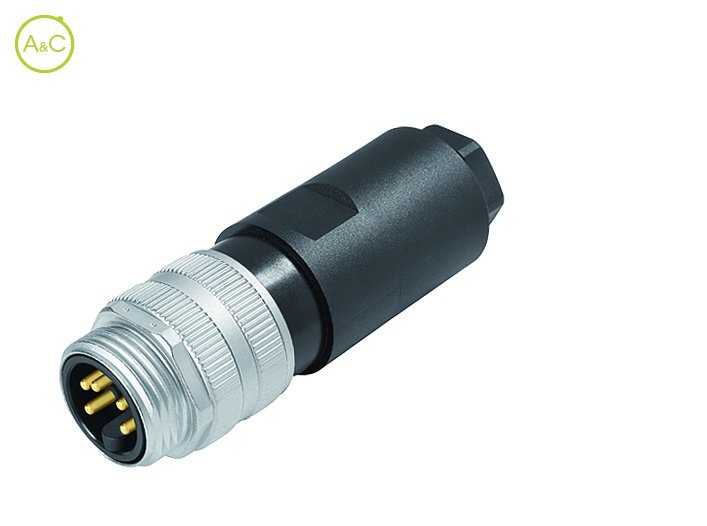

Male cable connector

UL-approval

99-2441-21-03

99-2441-21-03

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

2+PE
3+PE
4+PE

Article Number	99 2441 21 03	99 2441 42 03
Connector Diameter	27 mm	27 mm
Number Of Contacts	2+PE contacts	2+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V
Pollution Degree	3	3
Overvoltage Categorie	III	III
Material Group	III	III
Rated Current (40°)	12 A	12 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 2443 21 04	99 2443 42 04
Connector Diameter	27 mm	27 mm
Number Of Contacts	3+PE contacts	3+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V
Pollution Degree	3	3
Overvoltage Categorie	III	III
Material Group	III	III
Rated Current (40°)	9 A	9 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 2445 21 05	99 2445 42 05	99 2445 23 05	99 2445 43 05
Connector Diameter	27 mm	27 mm	27 mm	27 mm
Number Of Contacts	4+PE contacts	4+PE contacts	4+PE contacts	4+PE contacts
Connector Locking System	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)	Screw (7/8"-16 UN)
Termination	Screw	Screw	Screw	Screw
Wire Section	1.5 mm²	1.5 mm²	2.5 mm²	2.5 mm²
Protection Degree	IP67	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-25 °C
Rated Voltage	300 (UL 600)	300 (UL 600)	300 (UL 600)	300 (UL 600)
Rated Impuls Voltage	4000 V	4000 V	4000 V	4000 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	III	III	III	III
Material Group	III	III	III	III
Rated Current (40°)	9 A	9 A	9 A	9 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)	PBT (UL 94 V-0)	PBT (UL 94 V-0)	PBT (UL 94 V-0)
Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
