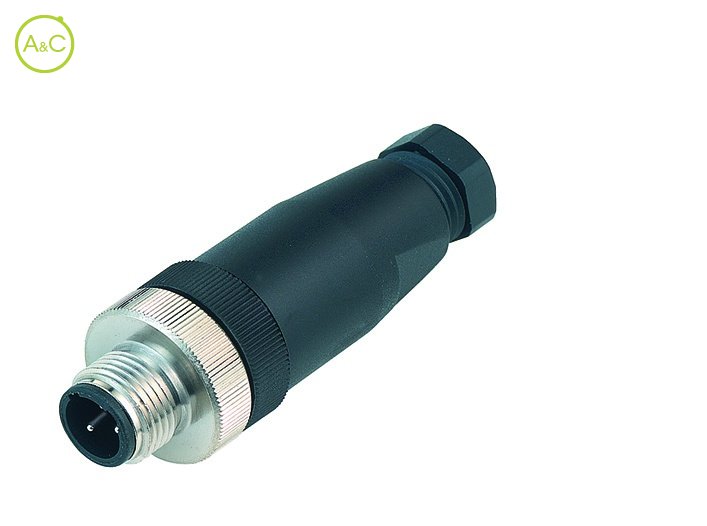

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 2+PE
| Article Number | 99 2529 14 03 |

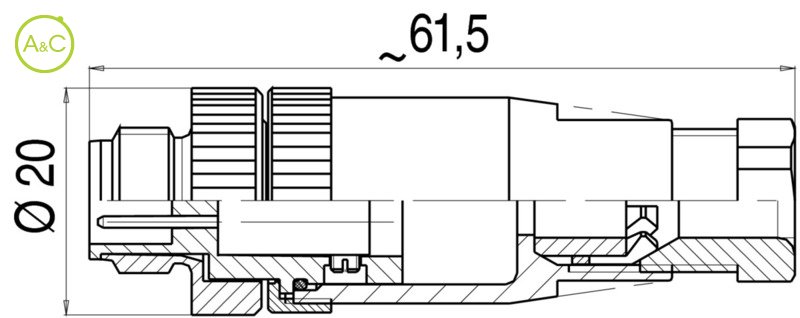

| Connector Diameter | 20 mm |
| Number Of Contacts | 2+PE contacts |
| Connector Locking System | Screw (M12-US) |
| Termination | Screw |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >50 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 8 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
| Material Of Insert | PA |
| Material Of Housing | PA |
| Cable Outlet | 4-6 mm |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
