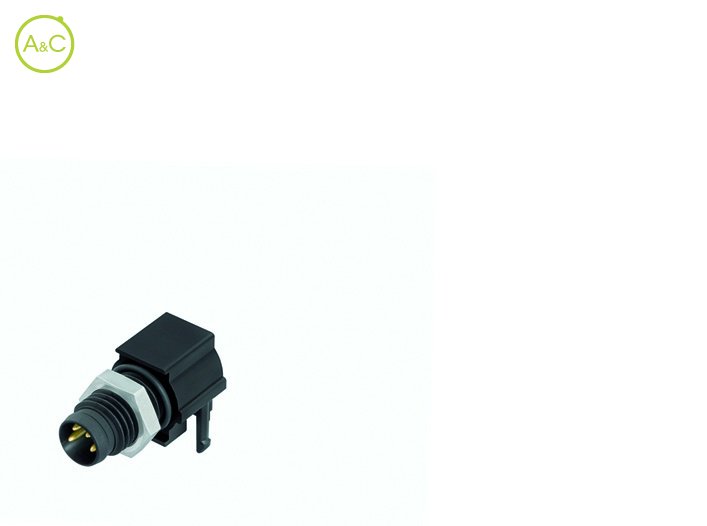

Male angled panel mount connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	99 3403 282 03
Connector Diameter	12.6 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw, snap-in
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated, PA
Datenblatt	Download Datenblatt

Article Number	99 3391 282 04
Connector Diameter	12.6 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw, snap-in
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated, PA
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
