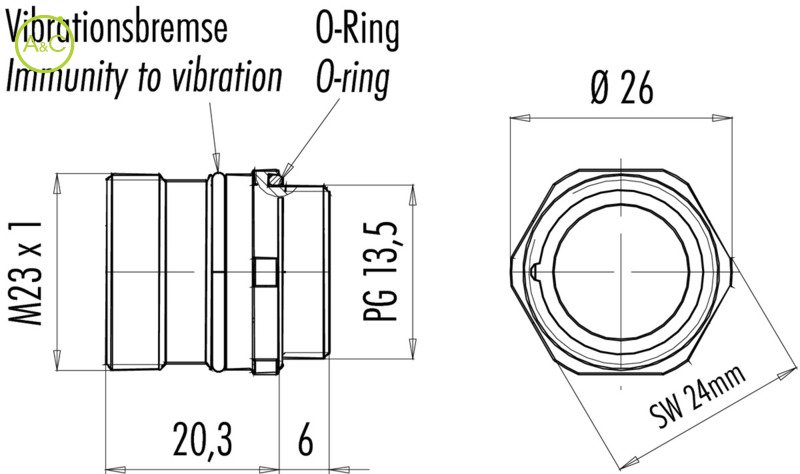

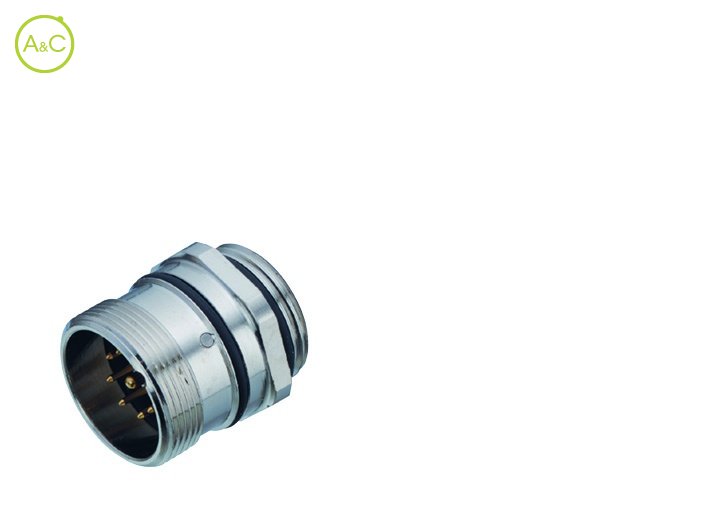

Male panel mount connector

Center fastened, PG 13,5

99-4637-20-06

99-4637-20-06

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

6
9
12
16
19

Article Number	99 4637 20 06
Connector Diameter	26 mm
Number Of Contacts	6 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	300
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	20 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	Zinc die cast nickel plated
Datenblatt	Download Datenblatt

Article Number	99 4603 20 09	99 4603 21 09
Connector Diameter	26 mm	26 mm
Number Of Contacts	9 contacts, clockwise	9 contacts, anticlockwise
Connector Locking System	Screw (M23)	Screw (M23)
Termination	Solder	Solder
Wire Section	8 x 1,5 / 1 x 2,5 mm²	8 x 1,5 / 1 x 2,5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-20 °C	-20 °C
Rated Voltage	300	300
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	8 x 8 / 1 x 20 A	8 x 8 / 1 x 20 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT/PA66	PBT/PA66
Material Of Housing	Zinc die cast nickel plated	Zinc die cast nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 4607 20 12	99 4607 21 12
Connector Diameter	26 mm	26 mm
Number Of Contacts	12 contacts, clockwise	12 contacts, anticlockwise
Connector Locking System	Screw (M23)	Screw (M23)
Termination	Solder	Solder
Wire Section	1 mm²	1 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-20 °C	-20 °C
Rated Voltage	150	150
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	8 A	8 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT/PA66	PBT/PA66
Material Of Housing	Zinc die cast nickel plated	Zinc die cast nickel plated
Datenblatt	Download Datenblatt	Download Datenblatt

Article Number	99 4611 20 16
Connector Diameter	26 mm
Number Of Contacts	16 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	1 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	150
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	8 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	Zinc die cast nickel plated
Datenblatt	Download Datenblatt

Article Number	99 4633 20 19
Connector Diameter	26 mm
Number Of Contacts	19 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	16 x 1 / 3 x 1,5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	150
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	16 x 8 / 3 x 10 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	Zinc die cast nickel plated
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
