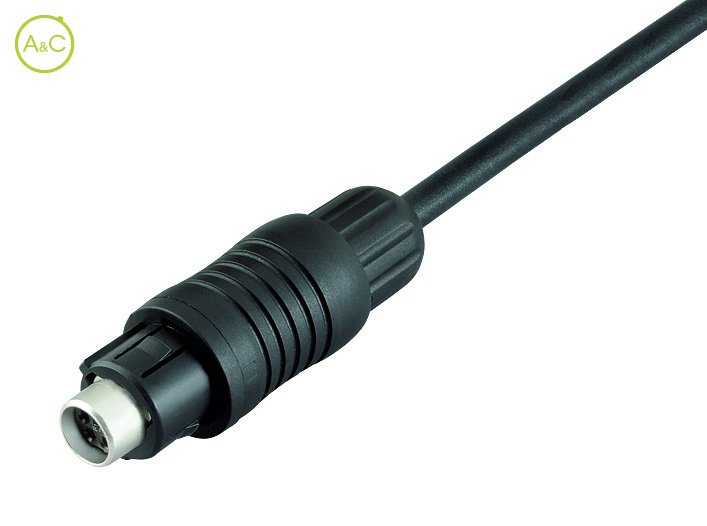

Female cable connector

shielded IP67

99-4906-00-03

99-4906-00-03

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

3
4
5
7
8

Article Number	99 4906 00 03

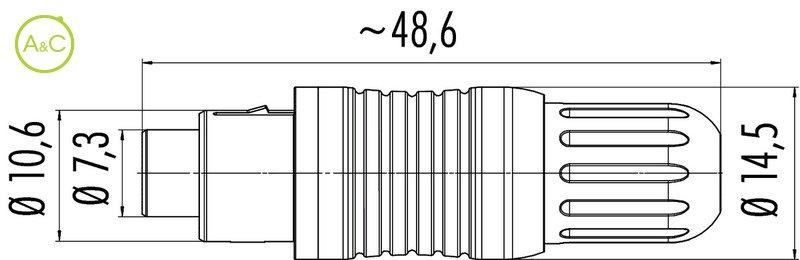

Connector Diameter	14.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	PA
Cable Outlet	3,5-5 mm
Datenblatt	Download Datenblatt

Article Number	99 4910 00 04
Connector Diameter	14.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	PA
Cable Outlet	3,5-5 mm
Datenblatt	Download Datenblatt

Article Number	99 4914 00 05
Connector Diameter	14.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	PA
Cable Outlet	3,5-5 mm
Datenblatt	Download Datenblatt

Article Number	99 4926 00 07
Connector Diameter	14.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	PA
Cable Outlet	3,5-5 mm
Datenblatt	Download Datenblatt

Article Number	99 4930 00 08
Connector Diameter	14.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	I
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA
Material Of Housing	PA
Cable Outlet	3,5-5 mm
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
