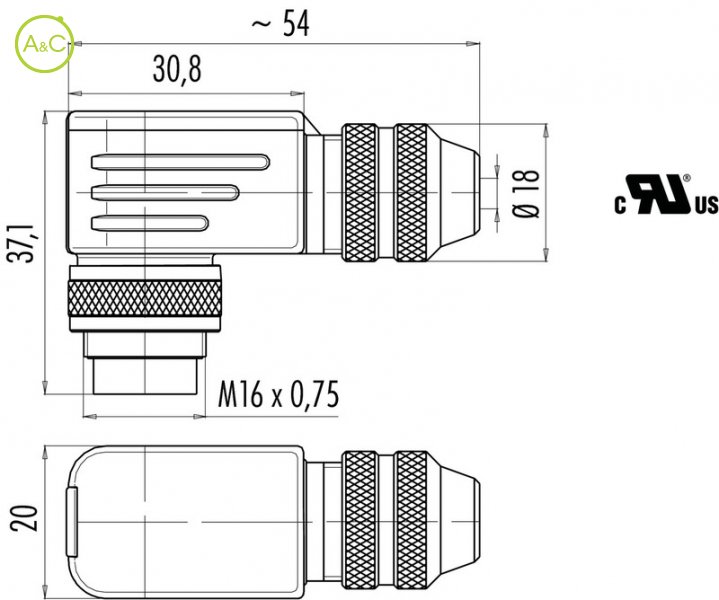

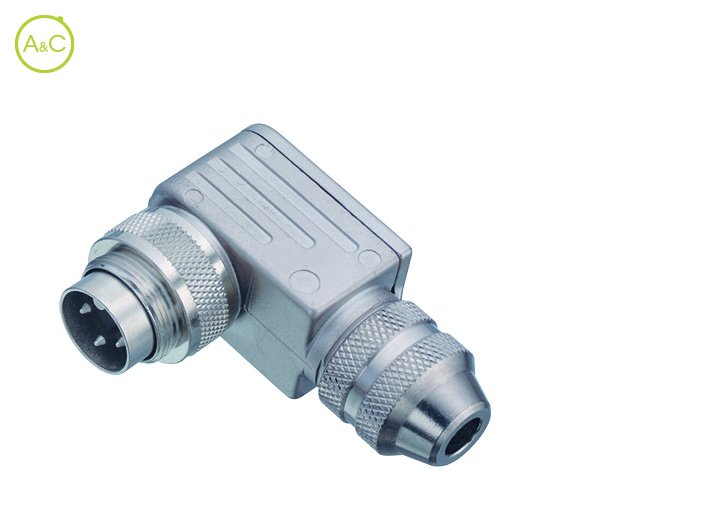

Male angled connector
- Shieldable
- UL-approval
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 2
- 3 DIN
- 4
- 5
- 5 (Stereo)
- 6 DIN
- 7
- 7 DIN
- 8 DIN
- 12
- 14
- 19
- 24
| Article Number | 99 5101 75 02 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 2 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 (32) |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 7 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5105 75 03 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 3 DIN contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 (32) |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 7 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5109 75 04 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 (32) |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 6 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5113 75 05 | 99 5113 79 05 |
| Connector Diameter | 18 mm | 18 mm |
| Number Of Contacts | 5 contacts | 5 contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 6 A | 6 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt | Download Datenblatt |
| Article Number | 99 5117 75 05 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 5 (Stereo) contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 6 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5121 75 06 | 99 5121 79 06 |
| Connector Diameter | 18 mm | 18 mm |
| Number Of Contacts | 6 DIN contacts | 6 DIN contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 5 A | 5 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt | Download Datenblatt |
| Article Number | 99 5125 75 07 | 99 5125 79 07 |
| Connector Diameter | 18 mm | 18 mm |
| Number Of Contacts | 7 contacts | 7 contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 125 (32) | 125 (32) |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 5 A | 5 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt | Download Datenblatt |
| Article Number | 99 5181 75 07 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 7 DIN contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0,75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 5 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | |
| Datenblatt |
| Article Number | 99 5171 75 08 | 99 5171 79 08 |
| Connector Diameter | 18 mm | 18 mm |
| Number Of Contacts | 8 DIN contacts | 8 DIN contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 60 (32) | 60 (32) |
| Rated Impuls Voltage | 500 V | 500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 5 A | 5 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt | Download Datenblatt |
| Article Number | 99 5129 75 12 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 12 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5451 75 14 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 14 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5461 75 19 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 19 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
| Article Number | 99 5495 75 24 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 24 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.14 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 1 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | CuZn (Brass, nickel plated) |
| Cable Outlet | 4-6 mm |
| Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
