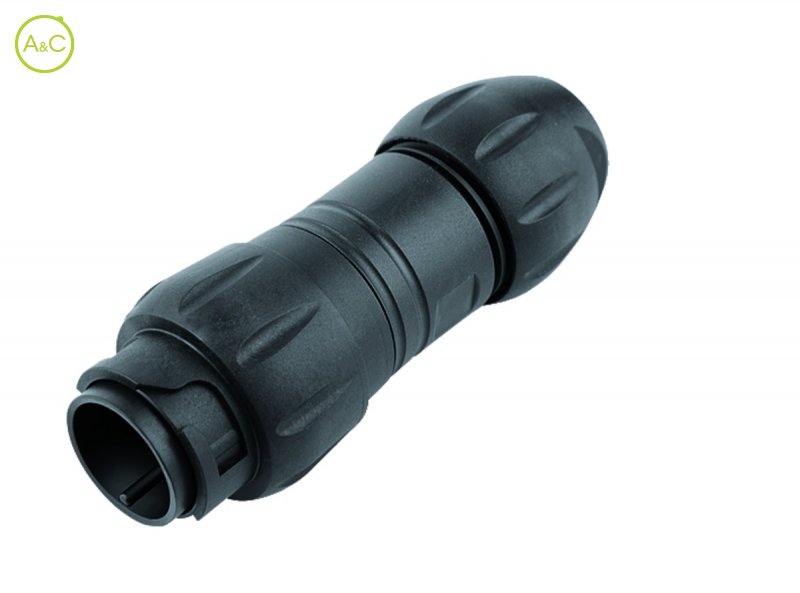

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Binder
Binder
Number Of Poles
- 4+3+PE
- 4+PE
- 12
| Article Number | 99 6501 000 08 |

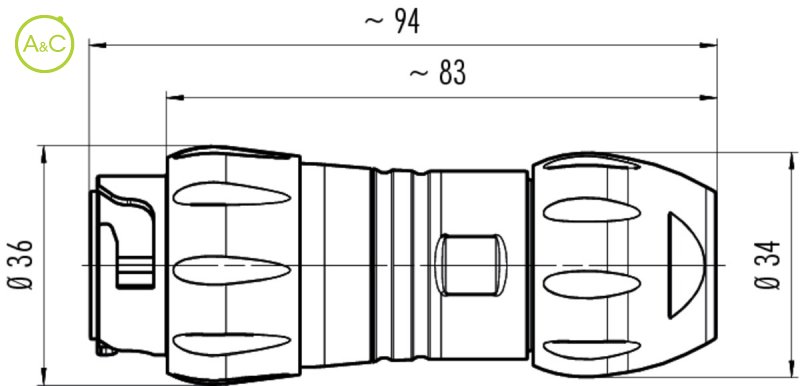

| Connector Diameter | 36 mm |
| Number Of Contacts | 4+3+PE contacts |
| Connector Locking System | Bayonet |
| Termination | Crimp |
| Wire Section | 0,14-2,50 mm² |
| Protection Degree | IP68/IP69K |
| Mating Cycles | >1000 times |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60V Signal/ 400V Power |
| Rated Impuls Voltage | 1000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | I |
| Rated Current (40°) | 3 Signal, 25 Power (20A UL) A |
| Max. Contact Resistance | >10 mΩ |
| Material Of Contact | depending on crimp contact |
| Plating | depending on crimp contact |
| Material Of Insert | PA |
| Material Of Housing | PA |
| Cable Outlet | 7-17 mm |
| Wire Gauge | 14-26 AWG |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
