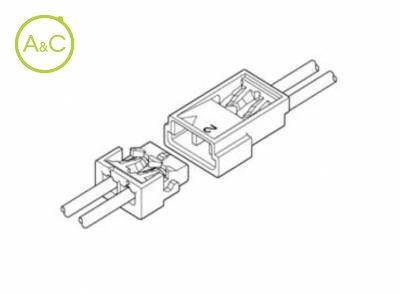

Plug Housing for ACH Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
| Article Number | ACHTP-02V-S |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 1.20 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 50 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This is the wire-to-wire connector for DC power supply compatible with the ACH connector for PC board.
Connector for DC power supply
Common use with the existing socket contact of ACH connector
RoHS Compliant
