Housing for AGH Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 3
| Article Number | AGHR-03V-1-H |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.25mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

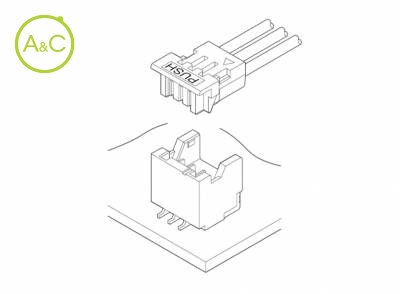

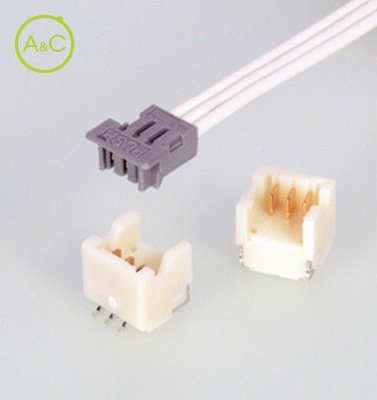

This 1.25mm pitch wire-to-board connector system offers excellent operational advantages over other connectors of a similar size, due to its top entry style and low profile characteristics. Also thanks to its unique rib configuration mating and un-mating performance is very stable.
With its low profile and ease of application this connector is ideal for battery connections in telecommunication equipment.
Miniaturization
Developed for mobile phone battery connection. The mounting height of 6.1mm (.240"), but can be reduced to 4.4mm (.173") depending on the designat low profile header side.
Distortion resistant construction
Because of the unique rib structure of the housing, the connector is resistant to distortion when extracting.
Applicable to surface mounting technology
The header has a sufficient area for suction for the use of automatic surface mounting system.
Standards
UL Recognized E60389
TUV J50014042
RoHS Compliant
