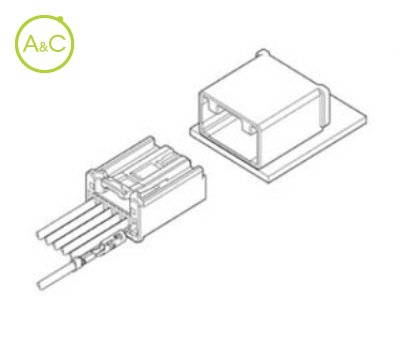

Female Connector Single Row

AIT-II CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Color

Black
Gray
Green
Orange
White

Article Number	AIT2PB-06-1AK	AIT2PB-10-1AK
Number Of Contacts	6	10
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V

Article Number	AIT2PB-06-1BH	AIT2PB-07-1BH	AIT2PB-10-1BH
Number Of Contacts	6	7	10
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V	14 V

Article Number	AIT2PB-10-1DM
Number Of Contacts	10
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	14 V

Article Number	AIT2PB-10-1AD
Number Of Contacts	10
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	14 V

Article Number	AIT2PB-06-1FS	AIT2PB-07-1FS	AIT2PB-10-1FS
Number Of Contacts	6	7	10
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V	14 V

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

0.64 unsealed low-profile connector series for use in a wide range of automotive applications. Variations There are multiple varieties of AIT-II Connectors which can satisfy your needs. RoHS Compliant
