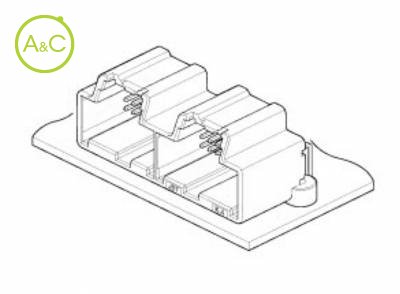

Male Connector for AIT Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 10
| Article Number | AITWSB-10-2AK |
| Number Of Contacts | 10 |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| General Description | 2.54mm Pitch Disconnectable Crimp Style |
| Connection Type | Automotive |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 14 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
0.64 non-waterproof connector series based on the same footprint of USCAR standard.
This connector has an abundant variation of PC board lock mechanism, circuit number development, and an adoption of designing wire-to-wire type, hence it enables to select the specified connector type according to your needs.
Specifications conform to footprint of USCAR standard.
Independent secondary locking features.
Standard
RoHS Compliant
USCAR
