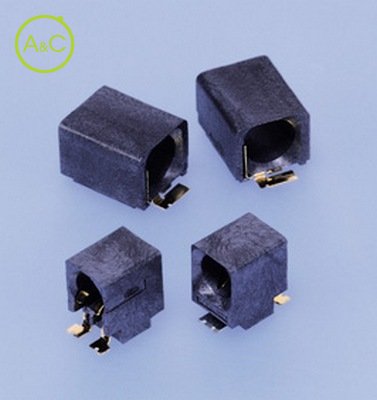

Female Connector for AN Connecot

  • AN CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Number Of Poles

  • 1
Article Number AN-A-2S-32-TF
Number Of Contacts 1
Upper Temperature +85 °C
Lower Temperature -40 °C
General Description For Antenna Connection
Connection Type Printed Circuit Board Connectors
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

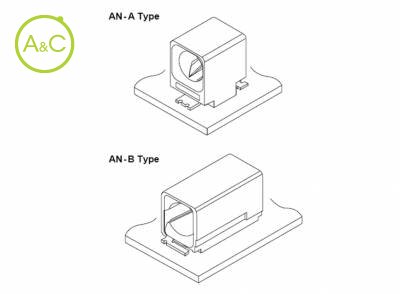

Designed for use in mobile phone and other small communications equipment. This antenna connector will accommodate both; 2.6mm (type A) and 3.35mm (type B) diameter antennas. Also, as with other JST connectors the material used is a high grade LCP (Liquid Crystal Polymer), which not only makes this suitable for SMT environments but also facilitates product reliability. Durability Highly reliable structure guarantees up to 10,000 insertion and withdrawal operations. Embossed tape for automatic mounting Supplied in embossed tape packaging for automatic surface mounting operation. RoHS Compliant
