Male Connector Top Entry
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Color
- Black
| Article Number | B04BA-AIT2-1AK | B06BA-AIT2-1AK-K |
| Number Of Contacts | 4 | 6 |
| Upper Temperature | +105 °C | +105 °C |
| Lower Temperature | -40 °C | -40 °C |
| General Description | 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Pitch / Style | 2.54 mm | 2.54 mm |
| Rated Current (ac/dc) | 5 A | 5 A |
| Rated Voltage (ac/dc) | 14 V | 14 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

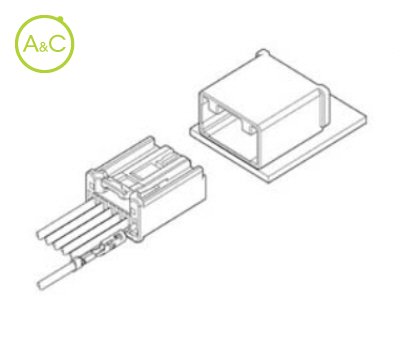

0.64 unsealed low-profile connector series for use in a wide range of automotive applications.
Ultra Low Profile Connector
Over 30% height reduction as compared to the standard USCAR footprints.
Variations
There are multiple varieties of AIT-II Connectors which can satisfy your needs.
RoHS Compliant
