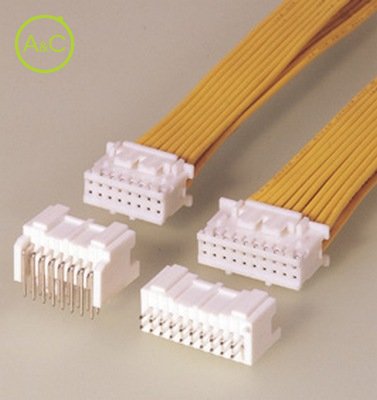

Top Entry Shrouded Header THT Without Boss

PAD CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	B10B-PADSS-F
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	B12B-PADSS-F
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	B14B-PADSS-F
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	B16B-PADSS-F
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	B20B-PADSS-F
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	B22B-PADSS-F
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	B24B-PADSS-F
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

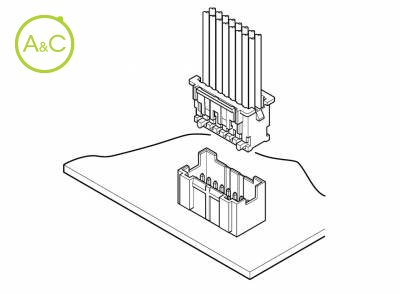

Double-row construction. Secure locking device prevents accidental diSConnection. The dimple at the center of the contact ensures stable contact with the post at all times. Locking device The housing has a locking device to securely hold the header, preventing accidental diSConnection because of external forces that might result from the routing of wires during assembly process or of vibration. Reliable contacts The contact has long dimples near the centre that ensure continuity of low voltage and low current circuits at all times, even under conditions of vibration and abusive prying. Insertion guide mechanism Header has housing insertion guides for easy and secure insertion. Polarizing boss Top entry type headers with polarizing bosses are also available. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
