Top Entry Locking Header THT

VR CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	B2P-VR
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B3P-VR
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B4P-VR
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B5P-VR
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B6P-VR
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B8P-VR
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B9P-VR
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B10P-VR
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B12P-VR-P
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B15P-VR-P
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

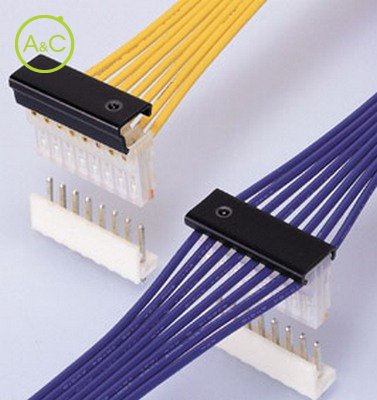

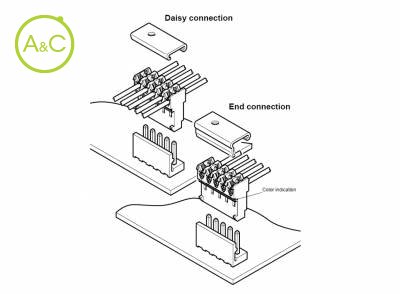

This 3.96mm (.156") pitch insulation displacement connector is used with printed circuit boards. Since the connector can accommodate 18 AWG wires and has a large pitch, it is ideal for connecting power supply circuits. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. Two types of connections This receptacle can be used for both daisy chain (through) connections and end connections. The end connections can be made from either direction. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant

Zubehör

PK-VR

Polarizing key
