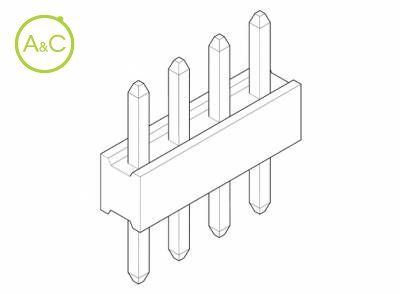

Side Entry Header THT

BC HEADER

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	B2PS-BC-1
Number Of Contacts	2
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B3PS-BC-1
Number Of Contacts	3
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B4PS-BC-1
Number Of Contacts	4
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B5PS-BC-1
Number Of Contacts	5
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B6PS-BC-1
Number Of Contacts	6
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B7PS-BC-1
Number Of Contacts	7
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B8PS-BC-1
Number Of Contacts	8
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B9PS-BC-1
Number Of Contacts	9
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Article Number	B10PS-BC-1
Number Of Contacts	10
General Description	2mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

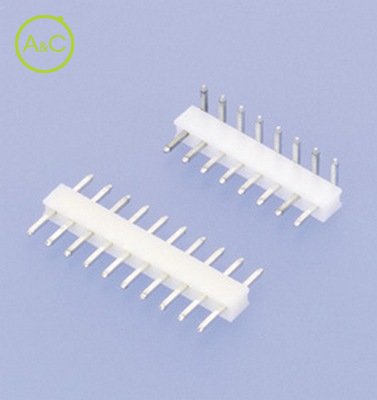

Measuring 2.0mm (.079") in pitch, this compact header is designed for direct board-to-board connection. Available in two types: the top entry type and the side entry type. In addition to the BC header, JST also offers the SB header having 2.5mm (.098") and 2.54mm (.100") pitches. Only the standard specifications are listed. Contact JST for special specifications. Standards UL Recognized E60389 RoHS Compliant
