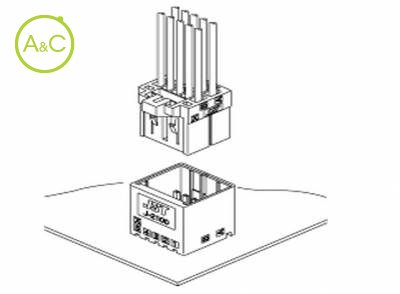

Top Entry Header THT Double Row Module
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 12
- 20
| Article Number | B12B-J25DK-GGR |
| Number Of Contacts | 12 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Factory Automation Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 4.6 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

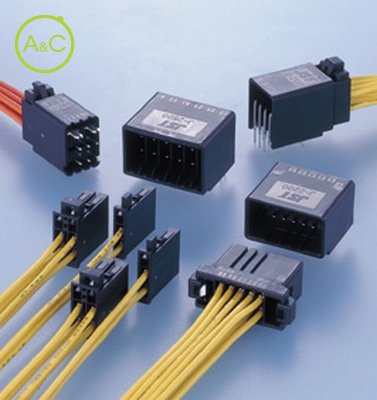

2.5mm (.098") pitch double-row connector for miniaturization of electronic equipment. Both center locking and side locking can be properly used according to a use.
Receptacle contacts are designed to be common with all JFA connector J2000 series.
Double-spring construction
Double-spring construction realizes stable contact performance. In addition, the length of contact is shortened to miniaturize connector.
Two kinds of locking method
"Center locking" realizes high-density mounting PC board, and "side locking" utilizes height direction of PC board.
Housing lance
Housing lance assures stable assembly and smooth insertion even in thin wire.
Clear "click feeling"
Clear feeling of click when mating connector can be realized, secure engagement.
Standards
UL Recognized E60389
RoHS Compliant
