Top Entry Shrouded Header THT High box type

XH CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	BH2B-XH-2
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH3B-XH-2
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH4B-XH-2
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH5B-XH-2
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH6B-XH-2
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH7B-XH-2
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH8B-XH-2
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH9B-XH-2
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH10B-XH-2
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

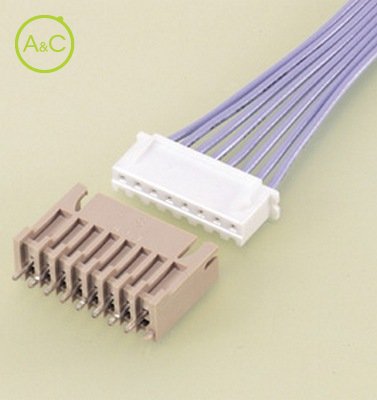

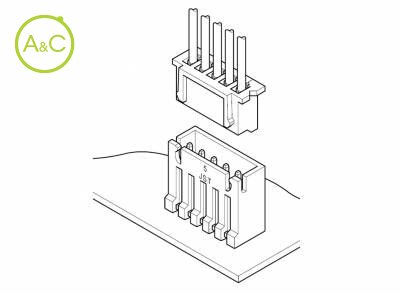

The header is tall and fully shrouded so as to prevent the resin used to coat the PC boards coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept XH mating receptacles. Header for 2.5mm (.098") pitch XH connector for use specifically with resin coated ("potted") PC boards. This header is tall and fully shrouded so as to prevent the resin used to coat the PC board from coming into contact with the mating pins. Interchangeability Designed to accept XH mating receptacles. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
