Top Entry Shrouded Header THT With Boss High box type

VH CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	BH1P-VH-1
Number Of Contacts	1
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH2P-VH-1
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH3P-VH-1
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH4P-VH-1
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH5P-VH-1
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH6P-VH-1
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH7P-VH-1
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH8P-VH-1
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

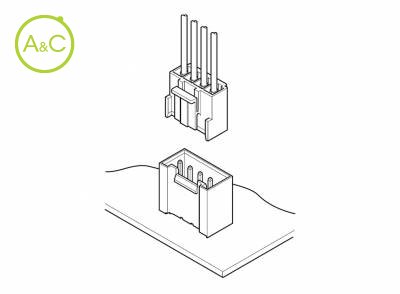

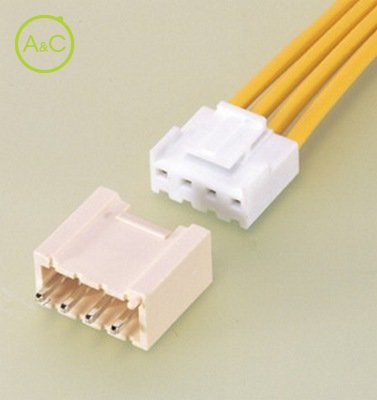

The header is tall and fully shrouded so as to prevent the resin used to coat the PCB coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept VH mating receptacles. The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion. Header for 3.96mm (.156") pitch VH connector for use specifically with resin coated ("potted") PC boards This header is tall and fully shrouded so as to prevent the resin used to coat the PC boards from coming into contact with the mating pins. Interchangeability Designed to accept VH mating receptacles. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75122 RoHS Compliant
