Receptacle Loose piece contact AWG 16 to 8

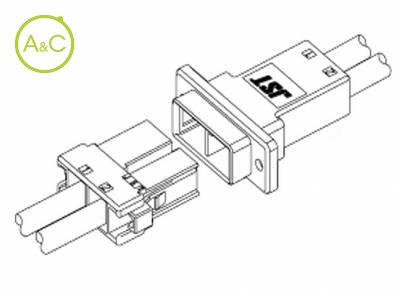

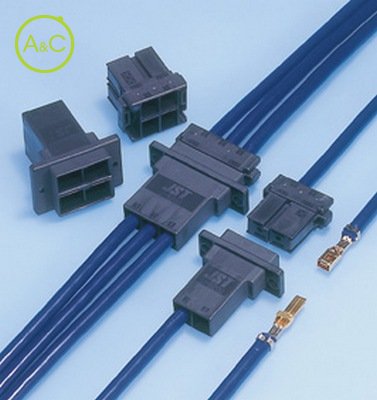

JFA CONNECTOR J5000 series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Applicable Wire

AWG 8
AWG 12 to 10
AWG 16 to 14

Article Number	LJ5F-91GF-M6.5
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	8.0 (AWG #8) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	11.00 mm
Rated Current (ac/dc)	50 A
Rated Voltage (ac/dc)	600 V

Article Number	LJ5F-81GF-M6.5
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	3.5 to 5.5 (AWG #12 to #10) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	11.00 mm
Rated Current (ac/dc)	50 A
Rated Voltage (ac/dc)	600 V

Article Number	BJ5F-71GF-M6.5
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	1.25 to 2.0 (AWG #16 to #14) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	11.00 mm
Rated Current (ac/dc)	50 A
Rated Voltage (ac/dc)	600 V

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

One touch mating and unmating connector corresponding to high current. Modular type is also available. High current capacity This connector is a high current carrying capacity of 50A max. (1 circuit/AWG #8) Easy mating connector This connector is realized low insertion and withdrawal force due to JFA connector contacts common structure, which facilitates easy mating connector. Standards UL Recognized E60389 RoHS Compliant

Zubehör

J5KP-VY

Keying Plug for JFA Connector J5000 series
