Top Entry Shrouded Header SMT

PBV CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	BM02(4.0)B-PBVSS-TF
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM03B-PBVSS-TF
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM04B-PBVSS-TF
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM06B-PBVSS-TF
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM08B-PBVSS-TF
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM10B-PBVSS-TF
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM12B-PBVSS-TF
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BM15B-PBVSS-TF
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

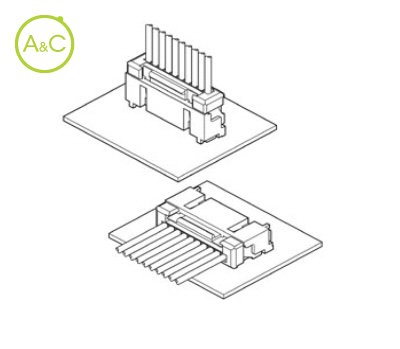

JST Introduces the PBV connector series to its extensive range of 2mm pitch diSConnectable crimp style wire to board connectors. Offering high performance and versatility, this robust connector system offers top and side entry mounting types. The PCB header of the PBV connector has been engineered with a secure internal locking mechanism. This design allows for a large surface area to facilitate vacuum pick and place application, thus eliminating the need for a separate tape/cap element. Available in 2, 3, 4, 6, 8, 10, 12 and 15 circuits. In order to maintain the suction area the 2-circuit product uses the 3 circuit product with the middle pin removed. The PCB layout of this series is compatible with that of the conventional PA connector SMT product, and utilizes the PA Family Series contacts. Secure locking structure Suction area on header (for vacuum pick and place) Prevention of deformation of contact RoHS Compliant
