Dual-row unit for Wire-to-Wire connection

TZ/TZW CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	BU16P-TZW-S
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU18P-TZW-S
Number Of Contacts	18
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU20P-TZW-S
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU22P-TZW-S
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU24P-TZW-S
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU26P-TZW-S
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU28P-TZW-S
Number Of Contacts	28
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU30P-TZW-S
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU32P-TZW-S
Number Of Contacts	32
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU34P-TZW-S
Number Of Contacts	34
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU36P-TZW-S
Number Of Contacts	36
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU38P-TZW-S
Number Of Contacts	38
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	BU40P-TZW-S
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Unit for Wire-to-Wire Connection
Connection Type	Wire to Wire Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

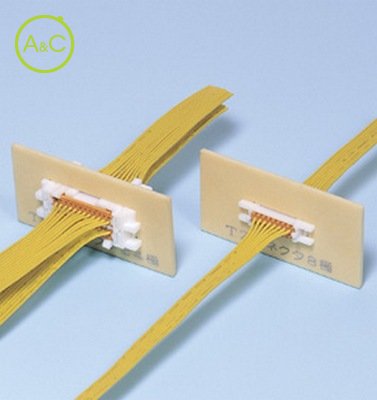

Based upon the 1.5mm (.059") pitch CZ connectors, the CZ family connectors have been expanded to meet the requirements of high density packaging. The CZW connector holder allows dual row wire-to-board connection using the CZ receptacles, while the TZ (single-row) or TZW (dual-row) allows wire-to-wire connection, also using the CZ receptacles. TZ/TZW connector The TZ connector is applicable to single-row connection, while the TZW connector is for dual-row connection. Applicable to wide range of panel thickness The design of the panel lock part does not allow the wires to be caught there before mounting on the panel. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
