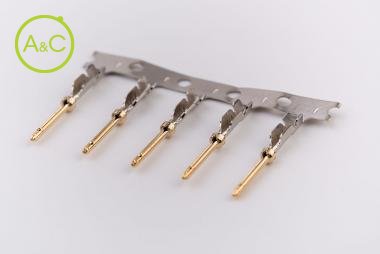

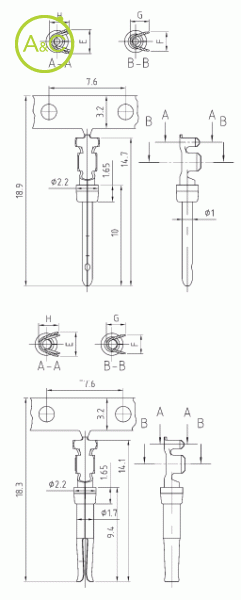

Stamped crimp contacts

AWG 20-24

C 15 20 GL G.T

C 15 20 GL G.T

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Packaging

Pack, 100 single contacts
Reel, 500 contacts
Reel, 10000 contacts

Article Number	C 15 20 00 G.T 100	C 16 20 00 G.T 100
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible to standard contact	Fully compatible to standard contact
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Cross Section	0,56 - 0,22	0,56 - 0,22

Article Number	C 15 20 SL G.T	C 16 20 SL G.T
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible to standard contact	Fully compatible to standard contact
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Cross Section	0,56 - 0,22	0,56 - 0,22

Article Number	C 15 20 GL G.T	C 16 20 GL G.T
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible to standard contact	Fully compatible to standard contact
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Cross Section	0,56 - 0,22	0,56 - 0,22
