Mixed layout crimp contacts

Signal contacts

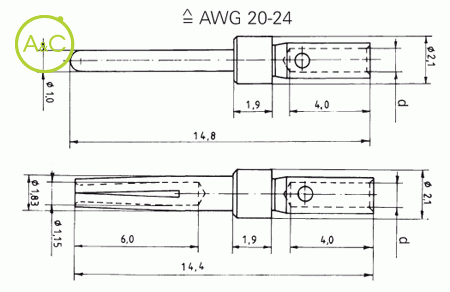

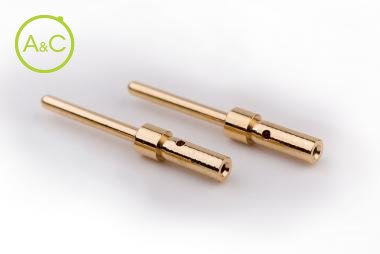

C051800G2

C051800G2

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Awg Range

AWG 18
AWG 20
AWG 22
AWG 24-28

Article Number	C051800G2	C061800G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	Female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	C052000G2	C062000G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	C052200G2	C062200G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	Female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	C052400G2	C062400G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Current Rating	5	5
Gender	Male	Female
Test Voltage U Eff	Contact-Contact: 1000 V Contact-Ground: 1200	Contact-Contact: 1000 V Contact-Ground: 1200
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
