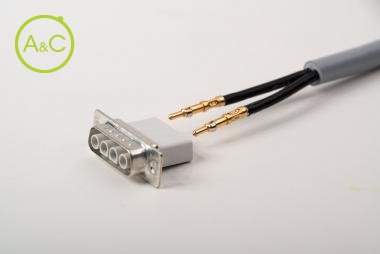

600V D-Sub Crimp Contacts

For power applications

C0616G2

C0616G2

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Contact Version

stamped
turned

Article Number	C1616T	C1516T
Mating Cycles	Turned contacts: 200 (class 2) Stamped contacts: 20 times	Turned contacts: 200 (class 2) Stamped contacts: 20 times
Contact Plating	Turned contacts: Au over Ni barrier Stamped contacts: tin plated	Turned contacts: Au over Ni barrier Stamped contacts: tin plated
Contact Material	Cu alloy	Cu alloy
Current Rating	Turned contacts: 20A Stamped contacts: 16	Turned contacts: 20A Stamped contacts: 16
Gender	Female	Male
Awg Range	AWG 20-12	AWG 20-12
Awg Size	AWG 20-16	AWG 20-16

Article Number	C0616G2	C0612G2	C0516G2	C0512G2
Mating Cycles	Turned contacts: 200 (class 2) Stamped contacts: 20 times	Turned contacts: 200 (class 2) Stamped contacts: 20 times	Turned contacts: 200 (class 2) Stamped contacts: 20 times	Turned contacts: 200 (class 2) Stamped contacts: 20 times
Contact Plating	Turned contacts: Au over Ni barrier Stamped contacts: tin plated	Turned contacts: Au over Ni barrier Stamped contacts: tin plated	Turned contacts: Au over Ni barrier Stamped contacts: tin plated	Turned contacts: Au over Ni barrier Stamped contacts: tin plated
Contact Material	Cu alloy	Cu alloy	Cu alloy	Cu alloy
Current Rating	Turned contacts: 20A Stamped contacts: 16	Turned contacts: 20A Stamped contacts: 16	Turned contacts: 20A Stamped contacts: 16	Turned contacts: 20A Stamped contacts: 16
Gender	Female	Female	Male	Male
Awg Range	AWG 20-12	AWG 20-12	AWG 20-12	AWG 20-12
Awg Size	AWG 20-16	AWG 16-12	AWG 20-16	AWG 16-12

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
