Download Datenblatt

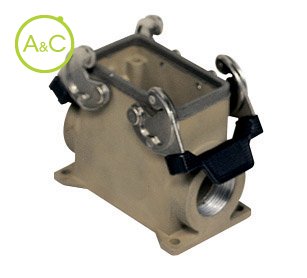

Surface mounting housings, for electromagnetic compatibility
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CAPS 10.21 |
| Protection Degree | IP66 |
| Material Housing | Aluminium |
| Height | 74 mm |
| Length | 93.5 |
| Extra Information |
Corrosion resistant EMC Version UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Side entry |
| Width | 57 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
