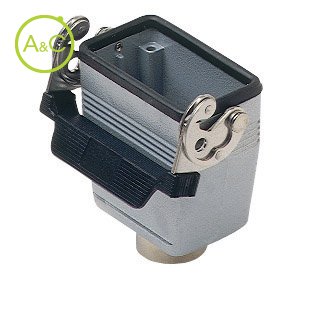

Hoods with 1 lever and gasket, high construction

  • Top entry
  • Aluminium, PG entry
Download Datenblatt

Entry

  • 1xPG21
  • 1xPG29
Article Number CAV 10 LG21
Protection Degree IP66
Material Housing Aluminium
Height 91 mm
Length 89
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 10 L
Covers with 2 pegs
CHC 10 SL
Covers with 2 pegs
