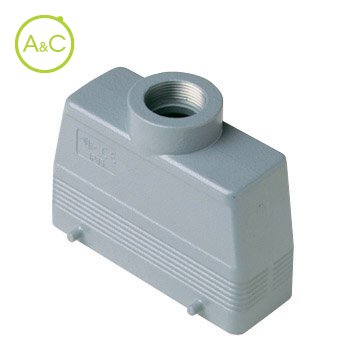

Hoods with 4 pegs, high construction
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Entry
- 1xPG21
- 1xPG29
Article Number | CAV 24.21 |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 91 mm |
Length | 120 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE |
Locking Mechanism | Double locking levers |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 43 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
