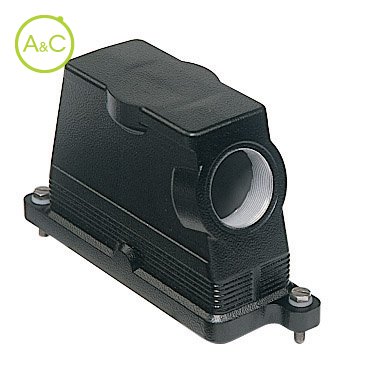

Hoods wtih side entry, Bayonet locking

  • Aluminium
  • PG entry
Download Datenblatt

Entry

  • 1xPG16
  • 1xPG21
  • 1xPG29
Article Number CGO 06.16 B
Protection Degree IP68
Material Housing Aluminium
Height 101 mm
Length 133
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 58 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
