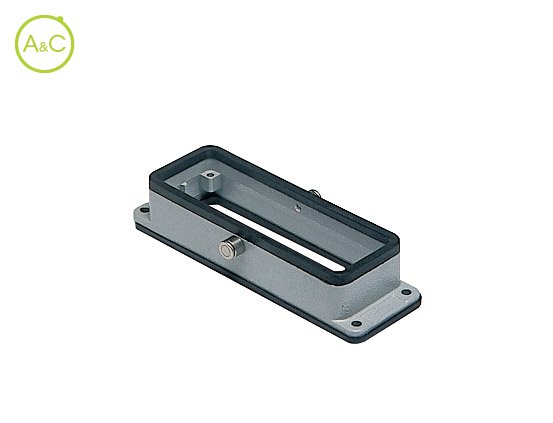

Bulkhead mounting housings with pegs
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CHI 06 YC |
| Protection Degree | IP65 |
| Material Housing | Aluminium |
| Height | 29 mm |
| Length | 82.5 |
| Extra Information |
UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CT 6 P + PE; CTSE 6 P (16A)+ PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE |
| Locking Mechanism | Central clamp |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 45.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
