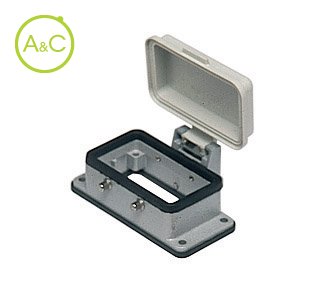

Bulkhead mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CHI 10 CP* |
| Protection Degree | IP65 |
| Material Housing | Aluminium |
| Height | 29 mm |
| Remark | May be combined with enclosures: CHO 10 X; CAO 10 X; CHV 10 X; CAV 10 X; MHO 10 X; MAO 10 X; MHV 10 X; MAV 10 X |
| Length | 95.5 |
| Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CT-CTSE 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V2 |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 45.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
