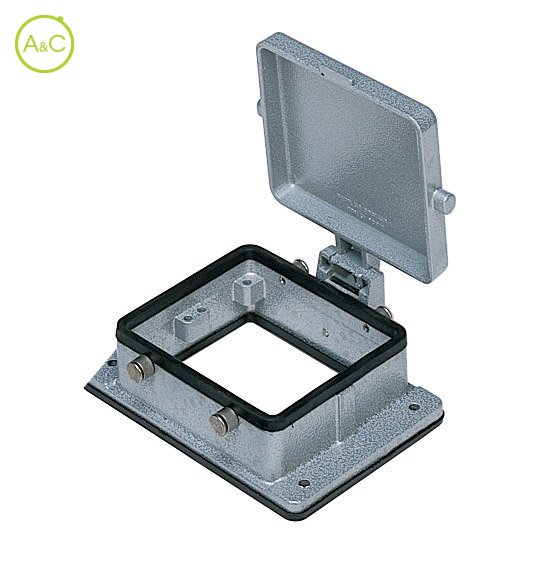

Bulkhead mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CHI 32 CS* |
| Protection Degree | IP65 |
| Material Housing | Aluminium |
| Height | 35 mm |
| Remark | May be combined with enclosures: CHO 32 X;CHV 32 X;CFO 32 X;CFV 32 X;MHO 32 X;MHV 32 X;MFO 32X;MFV 32 X |
| Length | 126 |
| Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CTSE 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 92 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
