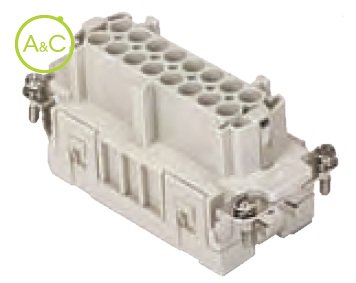

Inserts, 6+2(aux)P + PE, crimp connections
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CMCEF 06 |
| Pollution Degree | 3 |
| Number Of Poles | 6 |
| Connection Type | Crimp connection |
| Contact Type | Female |
| Required Crimp Contacts | CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Required Housing |
C-type size 77.27 C7 size 77.27 Simplex size 77.27 V-type size 77.27 BIG size 77.27 T-type size 77.27 T-type/W size 77.27 T-type/H size 77.27 T-type/C size 77.27 W-type size 77.27 EMC size 77.27 Central Lever size 77.27 High protection IP68 LS-type size 77.27 COB size 77.27 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 830 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 8 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
