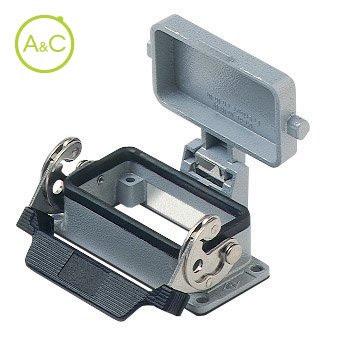

Bulkhead mounting housings with single lever and cover

  • Aluminium
Download Datenblatt
  • General
Article Number CMI 03 LS
Protection Degree IP65
Material Housing Aluminium
Height 29 mm
Length 95.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CME 3+2P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
