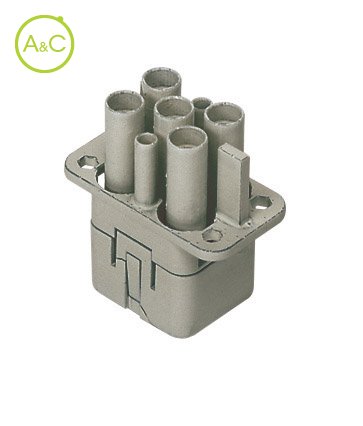

Inserts 4P+2P+PE , crimp connections
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CQF 04/2 |
| Pollution Degree | 3 |
| Number Of Poles | 4 + 2 |
| Connection Type | Crimp connection |
| Contact Type | Female |
| Required Crimp Contacts | CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5, CXFA 1.5, CXFA 2.5, CXFA 4.0, CXFA 6.0, CDF2D 0.3, CDF2D 0.5, CDF2D 0.7, CDF2D 1.0, CDF2D 1.5, CDF2D 2.5, CDFJD 0.3, CDFJD 0.5, CDFJD 0.7, CDFJD 1.0, CDFJD 1.5, CDFJD 2.5 |
| Colour | Grey |
| Extra Information |
Contact insert without contacts With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Required Housing |
C-type size 32.13 EMC size 32.13 |
| Diameter Male Contact | 4 poles: 4 mm 2 poles: 1,6 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 4 poles: 40A 2 poles: 10 A |
| Nominal Rated Voltage | 4 poles: 400/690V 2 poles: 250 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 4 poles: 6 kV 2 poles: 4 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
