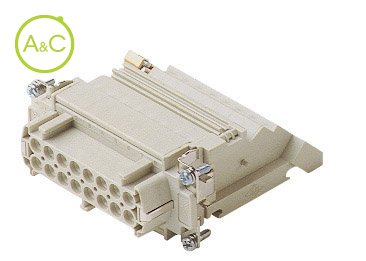

Terminal block inserts, 32P + PE, Spring terminal connection
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
Side Mounting
- Left
- Right
| Article Number | CTSEF 16 LN* | CTSEF 16 L* |
| Pollution Degree | 3 | 3 |
| Number Of Poles | 32 | 32 |
| Connection Type | Spring clamp connection | Spring clamp connection |
| Contact Type | Female | Female |
| Remark | Only for bulkhead mounted housings and BIG hoods | Only for bulkhead mounted housings and BIG hoods |
| Extra Information |
Modular version With protective conductor With wire protection |
Modular version With protective conductor With wire protection |
| Ambient Lower Temperature | -40 °C | -40 °C |
| Ambient Upper Temperature | 125 °C | 125 °C |
| Pin Numbers | 1-16 | 1-16 |
| Min. Cross Section Without End Sleeve | 0.75 mm² | 0.75 mm² |
| Max. Cross Section Without End Sleeve | 2.5 mm² | 2.5 mm² |
| Required Housing |
C-type size 77.62 W-type size 77.62 |
C-type size 77.62 W-type size 77.62 |
| Diameter Male Contact | 2.5 mm | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 | V0 |
| Material Insert | Thermoplastic | Thermoplastic |
| Material Contact | Brass | Brass |
| Plating Of Contact | Silver | Silver |
| Max. Rated Current | 16 A | 16 A |
| Nominal Rated Voltage | 500 V | 500 V |
| Over Voltage Category | III | III |
| Rated Surge Voltage | 6 kV | 6 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
