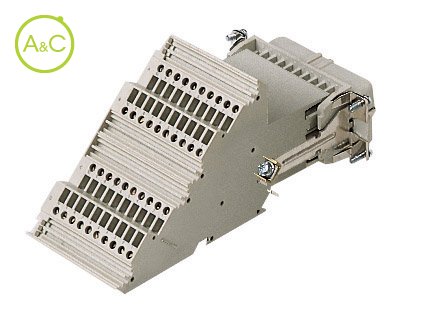

Inserts, 40P + PE, Spring terminal connection
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
Side Mounting
- Left
- Right
| Article Number | CTSF 40 L* |
| Pollution Degree | 3 |
| Number Of Poles | 40 |
| Connection Type | Spring clamp connection |
| Contact Type | Female |
| Remark | Only for bulkhead mounted housings |
| Extra Information |
With protective conductor With wire protection |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section With End Sleeve | 0.14 mm² |
| Max. Cross Section With End Sleeve | 1 mm² |
| Min. Cross Section Without End Sleeve | 0.14 mm² |
| Max. Cross Section Without End Sleeve | 2.5 mm² |
| Required Housing |
C-type size 77.27 C7 size 77.27 Simplex size 77.27 V-type size 77.27 W-Type size 77.27 EMC size 77.27 Central Lever size 77.27 LS-type size 77.27 |
| Diameter Male Contact | 1.6 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 10 A |
| Nominal Rated Voltage | 250 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 4 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
