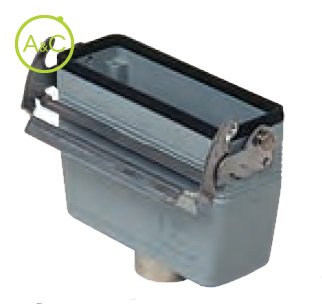

Hoods top entry, high construction
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Entry
- 1xPG21
- 1xPG29
Article Number | CVAV 06 LG21 |
Protection Degree | IP67 |
Material Housing | Aluminium |
Height | 93 mm |
Length | 74 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 65 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
