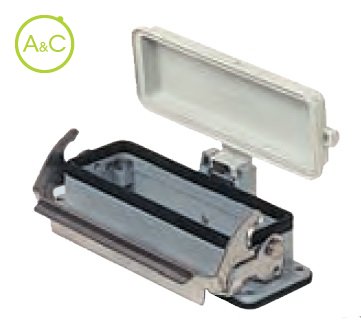

Bulkhead mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CVI 16 LS |
| Protection Degree | IP65 |
| Material Housing | Aluminium |
| Height | 29 mm |
| Length | 115.5 |
| Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 40 P + PE; CT-CTS 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CT-CTSE 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
| Locking Mechanism | Single locking lever |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 45.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
