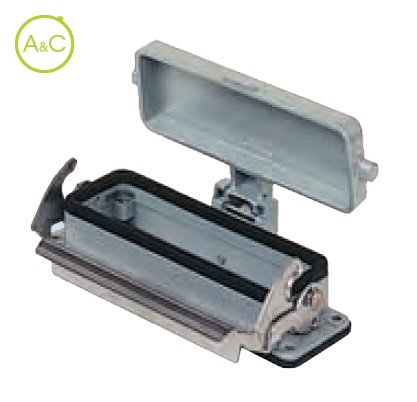

Bulkhead mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CVI 24 LP |
| Protection Degree | IP65 |
| Material Housing | Aluminium |
| Height | 29 mm |
| Length | 142.5 |
| Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 64P + PE; CT-CTS 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CT-CTSE 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules;CDSH 42 P + PE |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V2 |
| Locking Mechanism | Single locking lever |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 45.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
