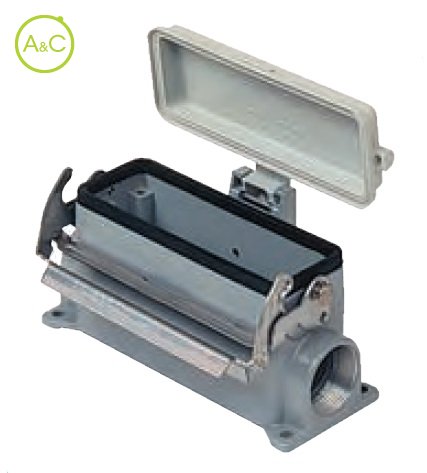

Surface mounting housings

With single lever in stainless steel and plastic cover
Aluminium, PG entry

CVP 06 LP

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xPG16
2xPG16

Article Number	CVP 06 LP
Protection Degree	IP65
Material Housing	Aluminium
Height	53 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Inflammability Class Of Insulation Material Acc. With Ul94	V2
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	52 mm

Article Number	CVP 06 LP2
Protection Degree	IP65
Material Housing	Aluminium
Height	53 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Inflammability Class Of Insulation Material Acc. With Ul94	V2
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	52 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
