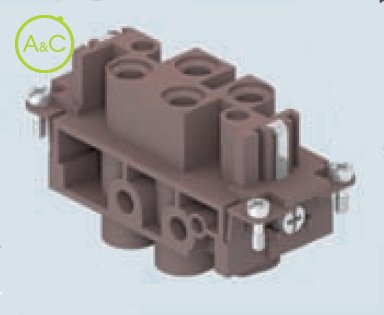

Inserts, 4+2P + PE, Screw terminal connection
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CXF 4/2 RY |
| Pollution Degree | 3 |
| Number Of Poles | 4+2 |
| Connection Type | Screw connection |
| Contact Type | Female |
| Extra Information | With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 180 °C |
| Min. Cross Section With End Sleeve | 4P: 4 mm² 2P: 0.25 mm² |
| Max. Cross Section With End Sleeve | 4P: 16 mm² 2P: 2.5 mm² |
| Required Housing | 180°C size 77.27 |
| Diameter Male Contact | 4 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 4P: 80 A 2P: 16 A |
| Nominal Rated Voltage | 4P: 690 V 2P: 400 V |
| Over Voltage Category | IV |
| Rated Surge Voltage | 4P: 8 kV 2P: 6 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
