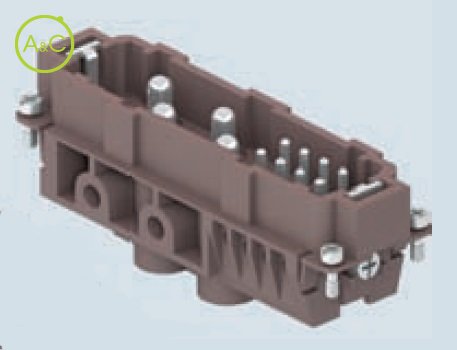

Inserts, 4+8P + PE, Screw terminal connection, use in temperatures up to 180°C
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CXM 4/8 RY |
| Pollution Degree | 3 |
| Number Of Poles | 4+8 |
| Connection Type | Screw connection |
| Contact Type | Male |
| Extra Information | With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 180 °C |
| Min. Cross Section With End Sleeve | 4P: 4 mm² 8P: 025 mm² |
| Max. Cross Section With End Sleeve | 4P: 16 mm² 8P: 2.5 mm² |
| Required Housing | 180°C size 104.27 |
| Diameter Male Contact | 4 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 4P: 80 A 8P: 16 A |
| Nominal Rated Voltage | 4P: 400 V 8P: 230/400 V |
| Over Voltage Category | II |
| Rated Surge Voltage | 4P: 6 kV 8P: 4 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
