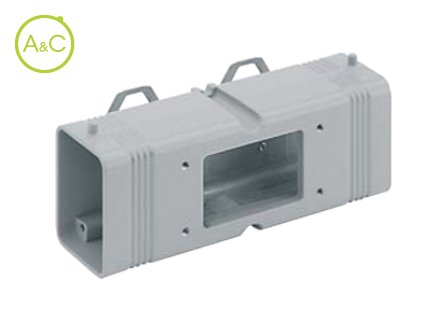

1 branch-off T-Box coupling

  • For 2 hoods with lever and gasket "44.27" size and one housing "57.27" size
Download Datenblatt
  • General
Article Number CYG 06H10D
Protection Degree IP65
Material Housing Aluminium
Height 43 mm
Length 150
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Housing Enclosures size 44.27
enclosures size 57.27
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Width 60 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
