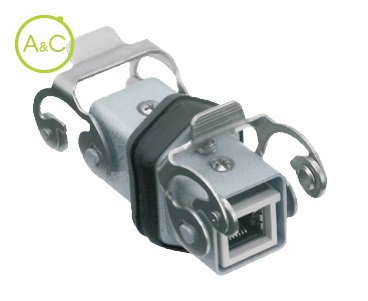

Female RJ 45 coupling, 8 data contacts / 2 power contacts
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CYG 8/2 JFA |
| Pollution Degree | 3 |
| Material Housing | Metal |
| Number Of Poles | 10 |
| Contact Type | Female |
| Height | 51 mm |
| Length | 42 |
| Extra Information | With interlocking device |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 120 °C |
| Category For Ethernet Cable | 5E |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Locking Mechanism | Single locking lever |
| Material Insert | Duroplast |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Nominal Rated Voltage | 50 V |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 120 °C |
| Over Voltage Category | I |
| Rated Surge Voltage | 0.8 kV |
| Width | 30.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
