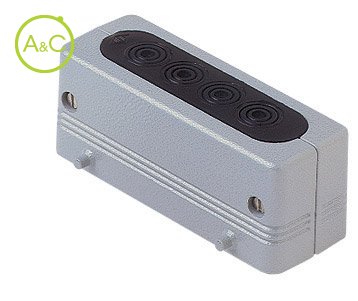

Cable passing hoods IP54

  • With pegs for 2 levers
  • 4 holes for round cables ø5 ÷ 13.5 mm
Download Datenblatt
  • General
Article Number CYR 24.4
Protection Degree IP54
Material Housing Aluminium
Height 47 mm
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts enclosures size 104.27 except T-Type series
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
