Surface mounting housings

With single lever, High construction
Aluminium, PG entry,Sideways

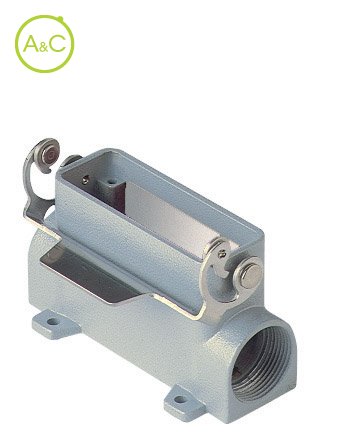

CZAP 25 L

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1x16PG
1x21PG
2x16PG
2x21PG

Article Number	CZAP 25 L
Protection Degree	IP66
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	50 mm

Article Number	CZAP 25 L21
Protection Degree	IP66
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	50 mm

Article Number	CZAP 25 L2
Protection Degree	IP66
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	50 mm

Article Number	CZAP 25 L221
Protection Degree	IP66
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	50 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Zubehör

Covers, with 2 pegs

Covers, with 2 pegs
